Separate type smart door lock,model:Z166

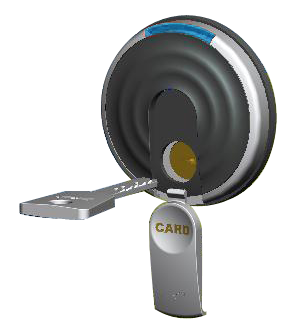

Z166 split type lock hidden key hole

With delicate the hidden key cylinder beneath the card reader,this lock's smaller reader and separate ‘handle and latch’ design makes it stands head and shoulders above other similar products.

As a key card lock manufacturer, we designed this separate type door lock model Z166/Z1660. Slimmer and smaller reader makes it looks like a beautiful lady. Multiple handle levers options for different matching. By using cost performance Bluetooth Low Energy and Radio Frequency Identification contactless technology, this model identity Z166 keycard lock is greatly suitable for new building and retrofit projects where concealment of previous lock fitting is not a priority. As part of decoration of a room, this model is a wise choice to provide a easy upgrade from old magnetic card lock or mechanical key locks.

Lock Panel Appearance:

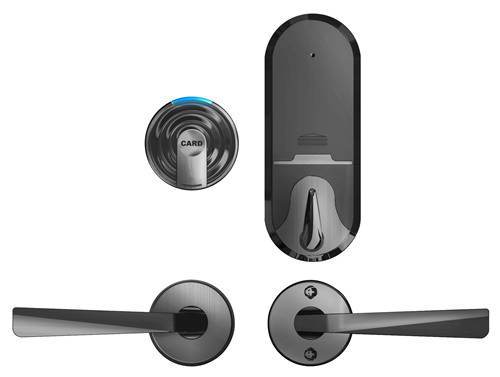

z166-22 hotel lock, matt black finish colour

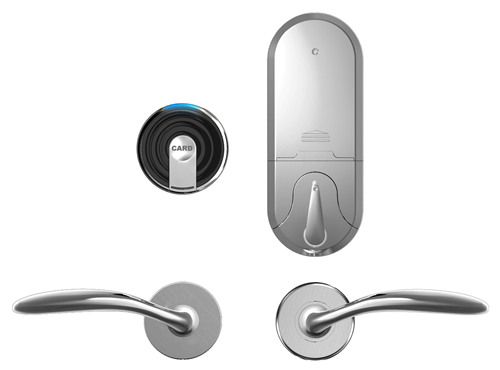

z166 hotel lock, silver finish colour


Panel Size of Separate style RFID Lock:

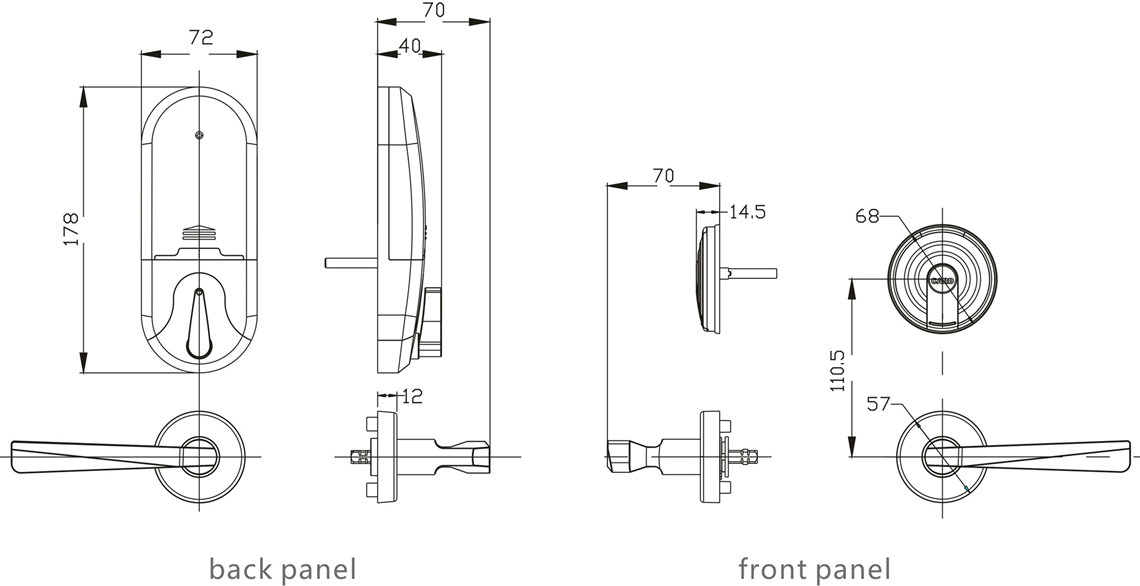

panel dimension of model z166 Separate Type RFID Door Lock


Installation demo:

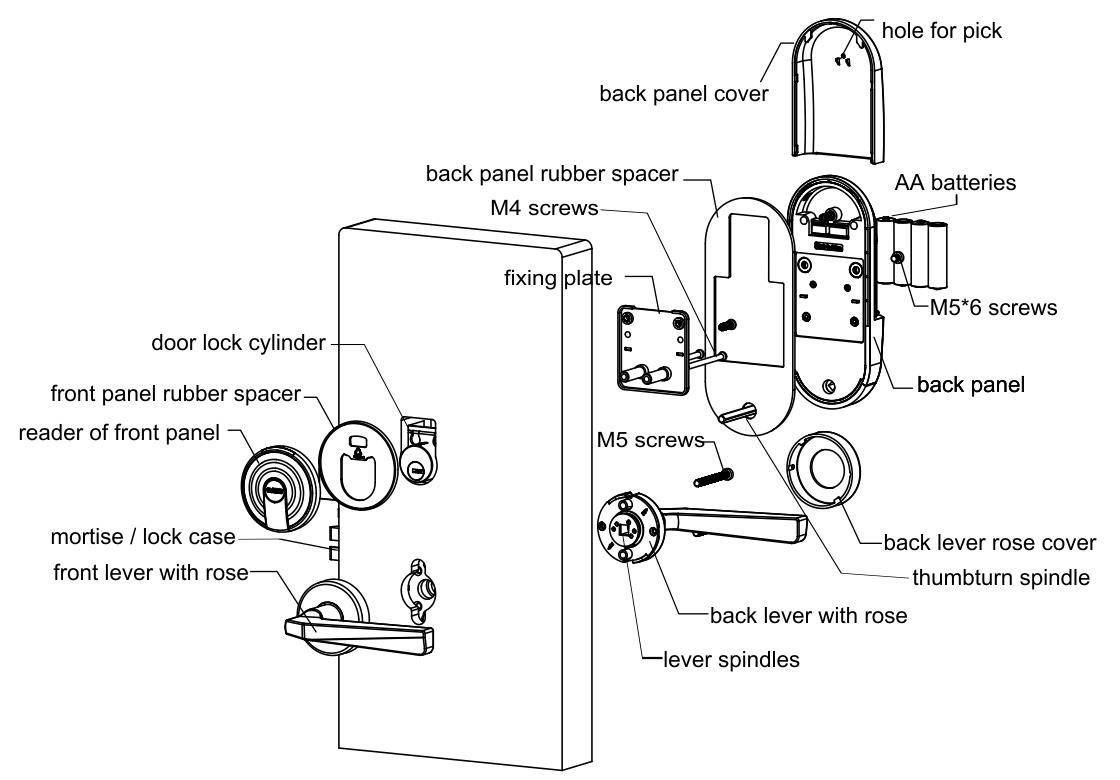

installation demo of Identity model z166 hotel lock


Open Methods:

RFID key card

backup metal key

RFID key card

RFID key card

Finish Options:

satin silver finish

satin silver

polished silver finish

polish silver

satin gold finish

satin gold

polished gold finish

polished gold

matt black finish

matt black

Handle Lever Options:

handle lever 15

handle lever No.15

handle lever 29

handle lever No.29

handle lever 22

handle lever No.22

handle lever 22

handle lever No.18

Operation video of RFID key card lock

Separate type RFID lock Specification:

  • model name:Model Z166(only RFID), Model Z1660(bluetooth chip equipped)
  • front panel size:Height:68mm, Width:68mm, Diameter:68mm (circle reader);
    back panel size:Height:178mm, Width:72mm;
  • gross weight:3.2kg per lockset when configed with ANSI M1 mortise;
            3.0kg per lockset when configed with ANSI M3 mortise including package;
  • major metal material: Zinc Alloy;
  • mortise options:60mm backset (2-3/8 inches) ANSI mortise M3 or 70mm backset (2-3/4 inches) ANSI mortise M1;
  • deadbolt type:mechanical deadbolt for privacy;
  • adaptable door thickness:30mm to 55mm;
  • bluetooth key function:not available;
  • key cards type:Mifare S50 1K key card complies with ISO14443A standard ;
  • RFID card working Frequency:13.56MHz;
  • RFID Card reading distance: 0 to 3cm (depending on practical electromagnetic environment);
  • EEPROM storage:1000 pieces of recent open record;
  • Power supply:it is powered by 4*1.5V AA (LR6) alkaline batteries / Lithium polymer batteries (user should purchase the quality batteries locally);
  • batteries life span: 12 to 18 months(standalone version)
    9 to 15 months(bluetooth version) depending on capacity of batteries;
  • Working voltage:4.5V-6.5V, if less than 4.7V, low battery warning will be made when presenting any valid administration cards in hotel lock mode; or presenting any valid key cards in DIY lock mode;
  • Low voltage warning:When working voltage of AA batteries is lower than around DC4.7V, when swiping management cards like master card, floor card, building card,etc (excluding guest card), the LED indicator of the door lock will flicker red and buzzer will sound while unlocking the door to remind the administrator of replacing old batteries with new ones. When such situation happens, the lock can still be opened around 50-100 times before batteries energy running out;
  • stand-by current: < 20μA (standalone version); < 40μA (bluetooth version);
  • Dynamic current: < 100mA (standalone version); < 160mA (bluetooth version);
  • self-locking feature: when swipe valid key card if user doesn't open the door within 3 seconds, the door will be locked again automatically.
  • Working temperature:0℃ to +50℃; ideal working temperature: 15 to 25; notice: if atmosphere temperature is lower than 4℃ or higher than 40℃, batteries performance will become weaker.Therefore, please consult with your battery supplier for details;
  • Storage condition: 0℃ to 80℃; keep dry; avoid exposure of directly in sunshine (Ultraviolet ray in sunshine will damage the molecule structure of plastic and make the plastic parts on the lock become crispy and fragile gradually.); avoid exposure of acid and alkaline chemical; avoid frozen; Humidity: 10~90% Relative Humidity;
  • template of 60mm backset
