Elegant Aluminum RFID Card Door Lock,model:A132RF

It is well-known that aluminum alloy is of anti-corrosiveness, light-weight, high strength and malleability. Therefore, model 132RF adopts aluminum alloy as major material, which shape its fashionable figure with various colors for options. Further more, battery house is located inside front panel, which is quite convenient for hotel's or apartment's owner to do the batteries maintenance. Finally, the hidden cylinder design looks more beautiful and offer more security.

The smart lock panel with fresh design fits into the door so well that you can hardly notice its existence.

Lock Panel Appearance:

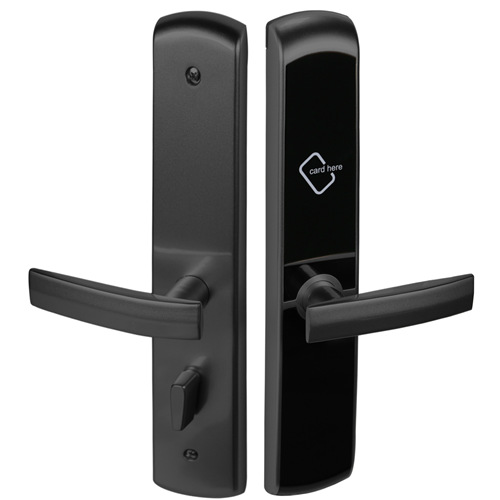

132RF hotel lock, black finish
RF132 hotel lock,silver finish

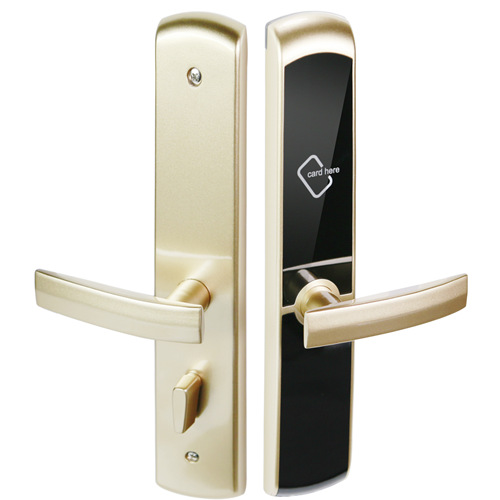

RF132 hotel lock, gold finish

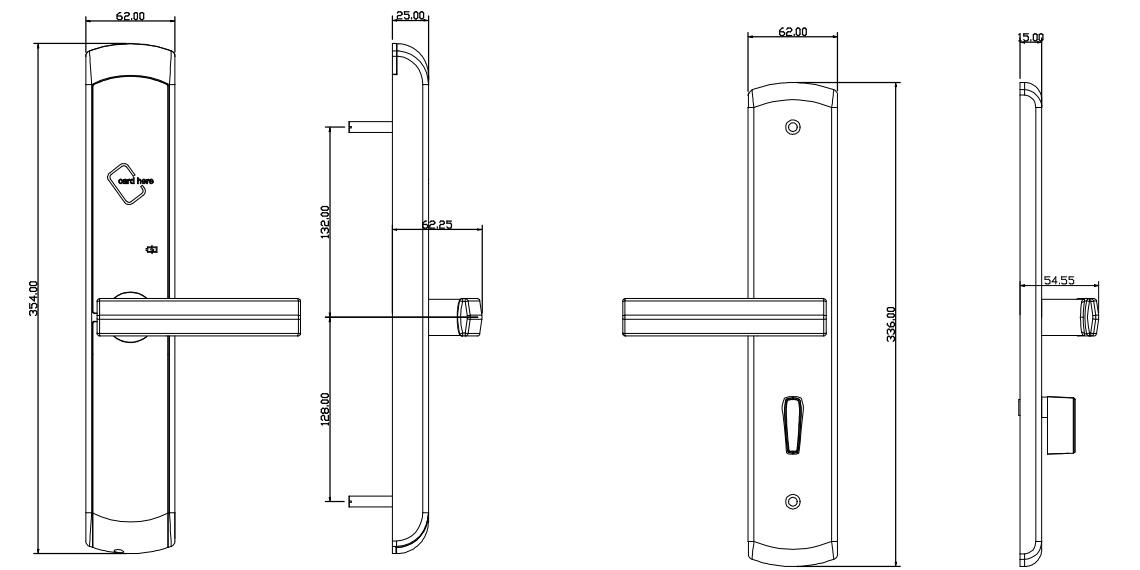

Lock Scheme of Aluminum RFID Lock:

lock scheme of model A132RF aluminum RFID Door Lock

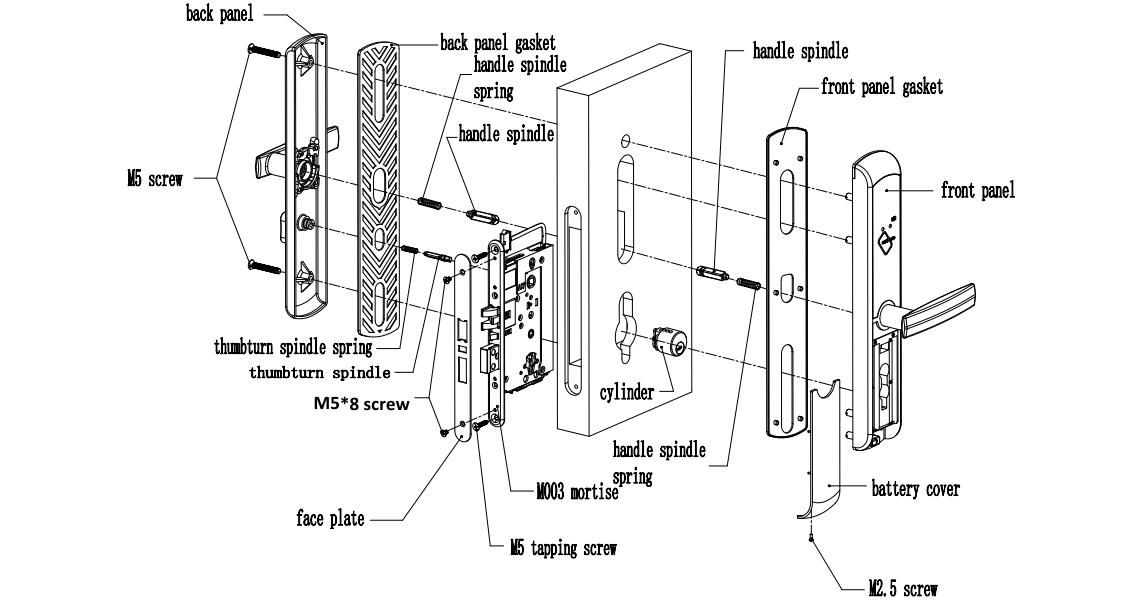

Lock Exploded view:

installation demo of model 132RF hotel lock



diy lock no need software mode

Under this mode, user can configure key cards on the smart digital lock directly without comprehensive electronic lock management software in short time. It can be applied on field of small hotel, hostel, office and residence.


software mode lock

Under this mode, administrator can configure multi-functional key cards of different purpose on a relevant software to manage numerous doors and rooms in a hotel or a school easily.

Open Methods:

RFID key card

backup metal key

RFID key card

RFID key card

BLE bluetooth lock

bluetooth via App(optional)

Handle Finish Options:

satin silver finish

Pearl Silver

satin gold finish

Pearl Gold

lock panel matt black finish

Matt Black

electronic Lock Mortise(lock case) Options:

RFID door lock Specification:

  • model name:Model A132(only RFID), Model A1320(bluetooth chip equipped)
  • front panel size:Height:354mm, Width:62mm,
    back panel size:Height:336mm, Width:62mm;
  • gross weight:2.2kg per lockset when configed with ANSI mortise 60mm(2.36inch) or 70mm(2.76inch) backset;
  • major metal material: Aluminum Alloy;
  • mortise options:60mm backset (2-3/8 inches) ANSI mortise M3 or 70mm backset (2-3/4 inches) ANSI lock case M1;
  • deadbolt type:mechanical deadbolt for privacy;
  • adaptable door thickness:30mm to 55mm;
  • bluetooth key function:opional;
  • key cards type:Mifare S50 1K key card complies with ISO14443A standard;
  • RFID card working Frequency:13.56MHz;
  • RFID Card reading distance: 0 to 1.5cm (depending on practical electromagnetic environment);
  • EEPROM storage:1000 pieces of recent open record;
  • Power supply:it is powered by 4*1.5V AA (LR6) alkaline batteries / Lithium polymer batteries (user should purchase the quality batteries locally);
  • batteries life span: 12 to 18 months(standalone version)
    9 to 15 months(bluetooth version) depending on capacity of batteries;
  • Working voltage:4.5V-6.5V, if less than 4.7V, low battery warning will be made when presenting any valid administration cards in hotel lock mode; or presenting any valid key cards in DIY lock mode;
  • Low voltage warning:When working voltage of AA batteries is lower than around DC4.7V, when swiping management cards like master card, floor card, building card,etc (excluding guest card), the LED indicator of the door lock will flicker red and buzzer will sound while unlocking the door to remind the administrator of replacing old batteries with new ones. When such situation happens, the lock can still be opened around 50-100 times before batteries energy running out;
  • stand-by current: < 20μA (standalone version); < 40μA (bluetooth version);
  • Dynamic current: < 100mA (standalone version); < 160mA (bluetooth version);
  • self-locking feature: when swipe valid key card if user doesn't open the door within 3 seconds, the door will be locked again automatically.
  • Working temperature:0℃ to +50℃; ideal working temperature: 15 to 25; notice: if atmosphere temperature is lower than 4℃ or higher than 40℃, batteries performance will become weaker.Therefore, please consult with your battery supplier for details;
  • Storage condition: 0℃ to 80℃; keep dry; avoid exposure of directly in sunshine (Ultraviolet ray in sunshine will damage the molecule structure of plastic and make the plastic parts on the lock become crispy and fragile gradually.); avoid exposure of acid and alkaline chemical; avoid frozen; Humidity: 10~90% Relative Humidity;
Model A132RF-M1/M3 mortise cutting hole template(dwg format)
