Retrofit Vingcard 2100 Style Replacement Proximity Smart Lock, model:S118/S1108

Model S118/S1108 is a kind of retrofit contactless RFID proximity card lock model, whose required cutting hole is the same as old vingcard/Onity's door lock and whose size is also big enough to cover the holes left by other old traditional door lock. In addition, this model can be equipped bluetooth module and opened by mobile phone. The electronic PCB part(antenna sensor) of this proximity card lock is wrapped by a plastic cover and proximity lock main-board is protected by stainless house that prevents moisture and dust from entering the lock inside.

It is a wise choice to replace old Vingcard magnetic card lock project and other retrofit projects with low budget, further more we are able to add BLE module into this lock to make it respond to trend of mobile key in the future and meet with the contactless demand during Covid-19 circumstance.

Retrofit Lock Panel Appearance:

S118 proximity card lock for replacing vingcard lock,silver finish color

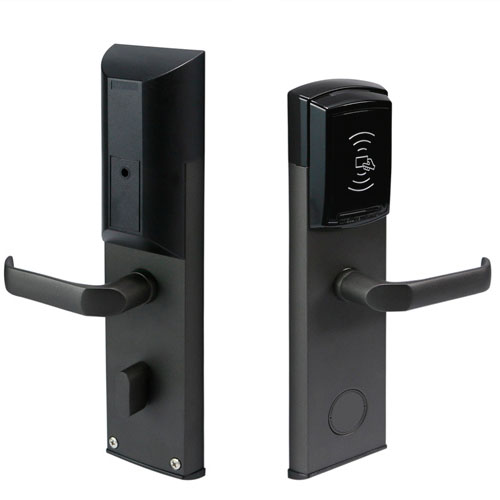

s118 proximity lock to replace vingcard essence lock black color

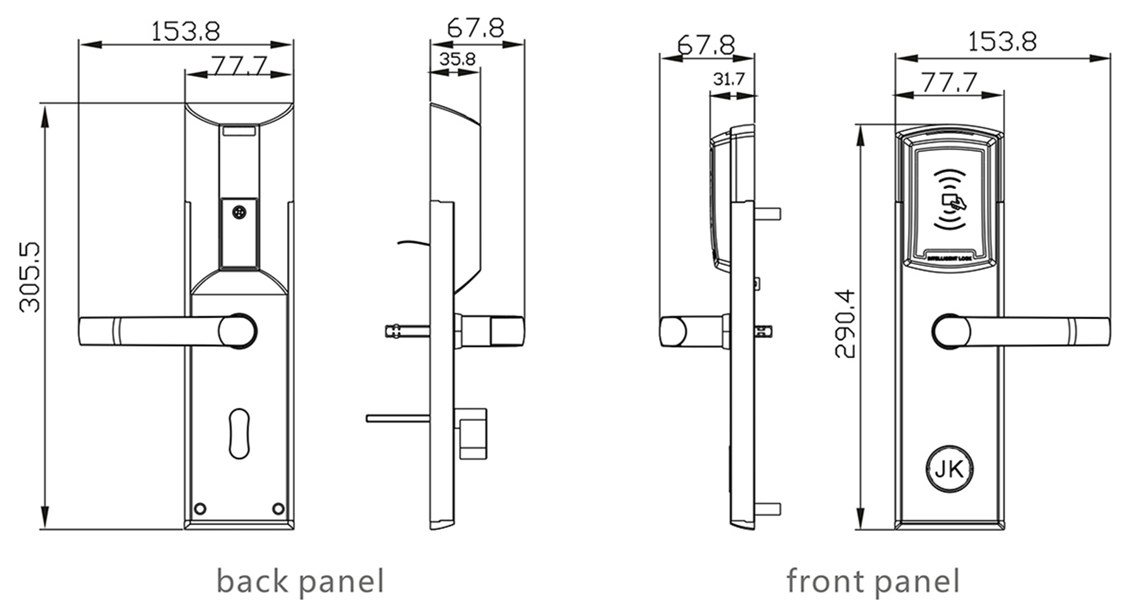

Retrofit Lock Panel Scheme:

dimension of model S118/S1108 low cost hotel lock to replace vingcard essence lock

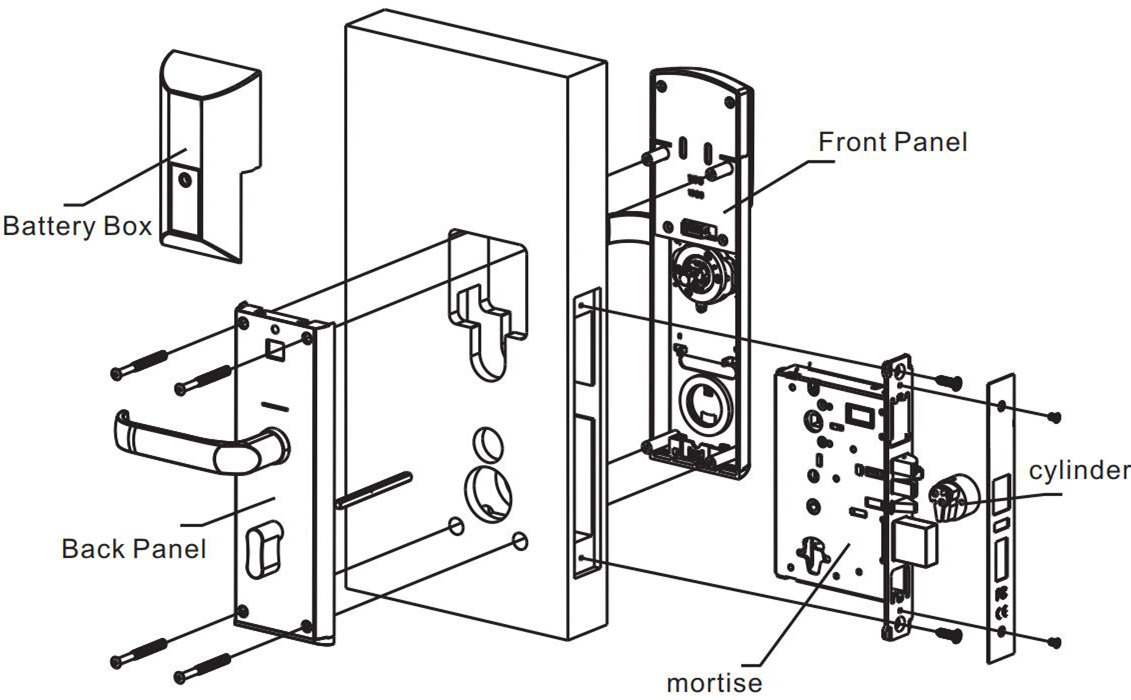

Exploded Installation demo:

installation demo of  S118

Open Methods:

RFID proximity backup key

override metal key

proximity key card

RFID key card

BLE bluetooth lock

bluetooth via App(optional)

Finish Options:

satin silver finish

Satin Silver

polished silver finish

Polished Silver

lock with polished gold finish

Satin Gold

matt black finish

Matt Black

Handle Lever Options:

handle lever 1

zinc alloy handle lever No.1

handle lever 18

stainless steel handle lever No.18

handle lever 32

stainless steel handle lever No.32

Retrofit Proximity Lock Specification:

  • model name:Model S118(only RFID), Model S1108(bluetooth chip equipped)
  • front panel size:Height:290.4mm, Width:77.7mm;
    back panel size:Height:305.5mm, Width:77.7mm;
  • gross weight:3.5kg per lockset when configed with M3 mortise;
            3.7kg per lockset when configed with M1 ANSI type mortise including package;
  • major metal material: Zinc Alloy;
  • mortise options:60mm backset (2-3/8 inches) ANSI mortise M3 or 70mm backset (2-3/4 inches) ANSI 5 latches mortise M1;
  • deadbolt type:mechanical deadbolt;
  • adaptable door thickness:30mm to 55mm;
  • bluetooth key function: optional;
  • key cards type:Mifare S50 1K key card complies with ISO14443A standard;
  • RFID card working Frequency:13.56MHz;
  • RFID Card reading distance: 0 to 5cm (relying on real electromagnetic environment);
  • EEPROM storage:1000 pieces of recent open record;
  • Power supply:it is powered by 4*1.5V AA (LR6) alkaline batteries / Lithium polymer batteries (user should purchase the quality batteries locally);
  • batteries life span: 12-18months depending on capacity of batteries
  • Working voltage:4.5V-6.5V, if less than 4.7V, low battery warning will be made when presenting any valid administration cards in hotel lock mode; or presenting any valid key cards in DIY lock mode;
  • Dynamic current: < 100mA (standalone version);
  • self-locking feature: when swipe valid key card if user doesn't open the door within 3 seconds, the door will be locked again automatically.
