Distinguished Split Type smart RFID Lock,model:Z162

As those seeking individuality, look no further than the Electronic Door Lock Z162. Its split ‘latches and handles’ design makes it stand out from the ordinary ones. By using RFID contactless technology, the Identity keycard lock is brilliantly suited to brand-new and refurbishment projects where concealment of previous lock fitting is not the first priority. This model Z162 is a excellent choice to offer a simple upgrade from older magnetic card or mechanical key locks.You will enjoy such split type door lock for sure.

It is so flexible that can be configed with different handle lever and its separate 'handle and latch' design makes it jump out of those conventional old boxes.

Lock Panel Appearance:

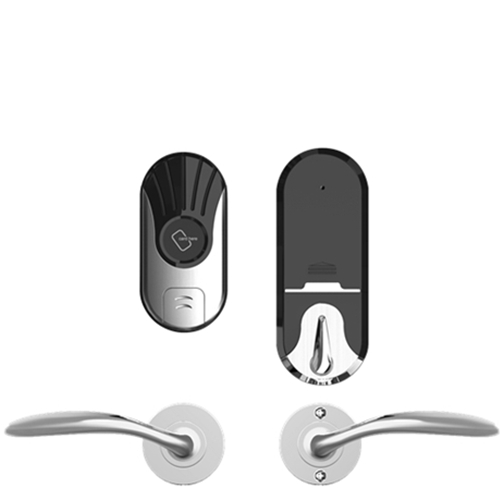

162-29 hotel lock, DIY lock silver finish colour

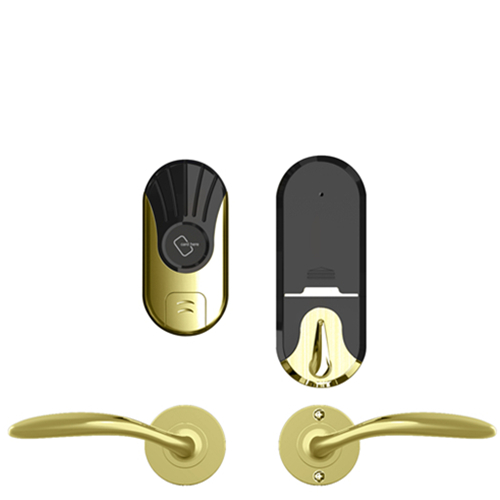

162-29 hotel lock, DIY lock golden finish colour

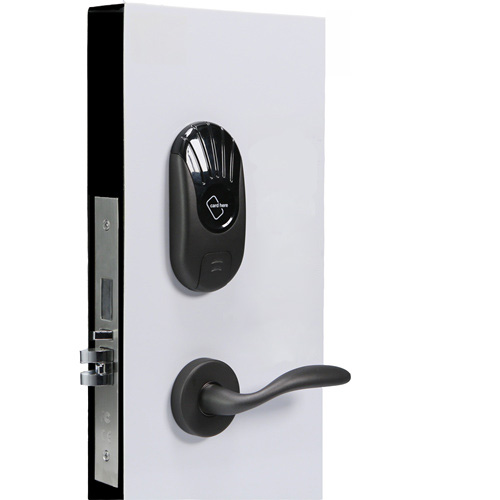

model 162 matt black finish front panel, hotel lock, DIY lock

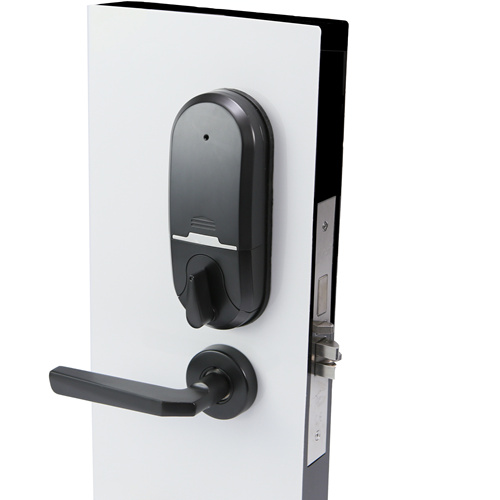

model 162 matt black finish back panel, hotel lock, DIY lock

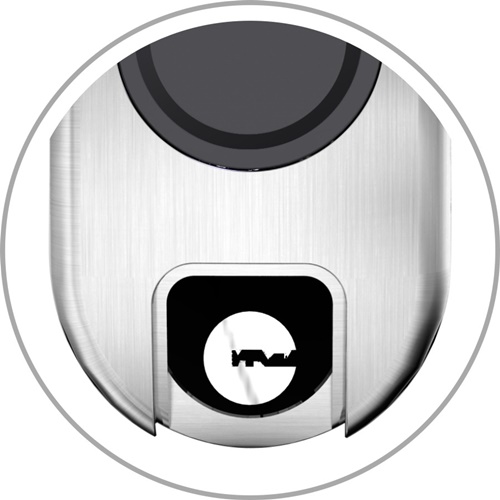

162-29 hotel lock, DIY lock

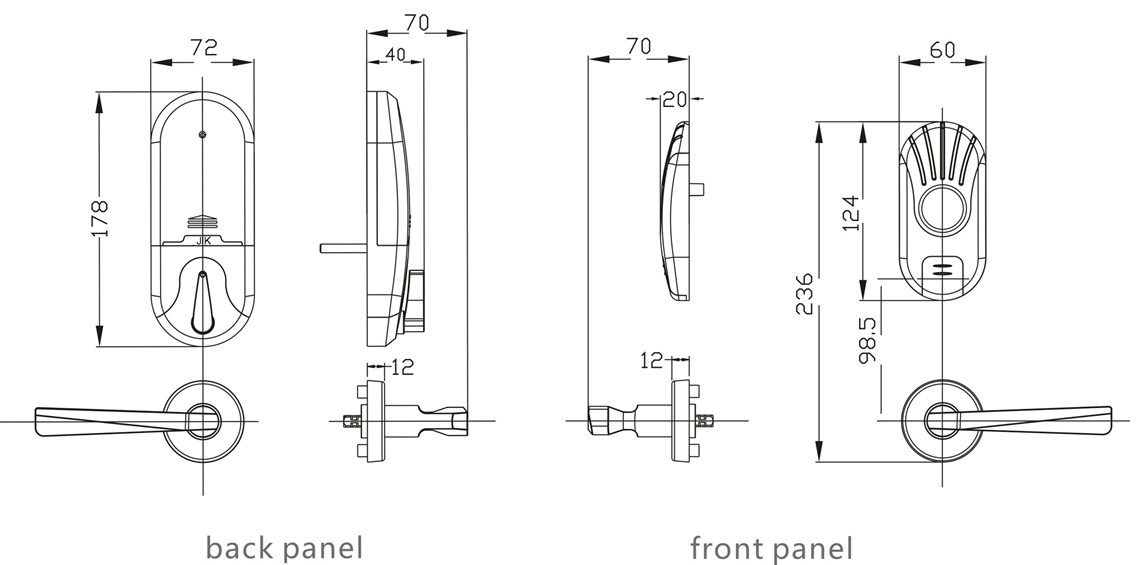

Panel Size of Split Type RFID Lock:

dimension of model 162 Split Type RFID Door Lock

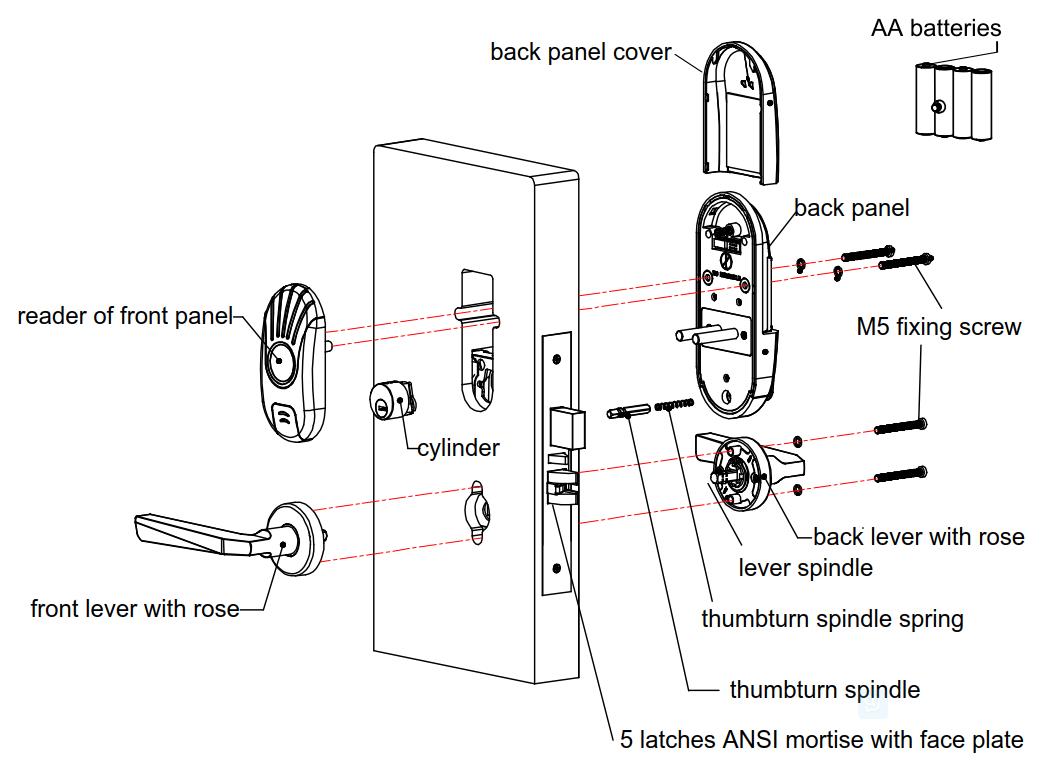

Smart Lock Exploded demo:

installation demo of model z162 separate type hotel lock

Open Methods:

RFID key card

backup metal key

RFID key card

RFID key card

BLE bluetooth lock

bluetooth via App(optional)

Finish Options:

satin silver finish

Satin Silver

polished silver finish

Polished Silver

satin gold finish

Satin Gold

polished gold finish

Polished Gold

matt black finish

Matt Black

Handle Lever Options:

handle lever 15

handle lever No.15

handle lever 29

handle lever No.29

handle lever 22

handle lever No.22

handle lever 22

handle lever No.18

Demo video of key card lock model Z162

Split Style RFID Lock Specification:

  • model name:Z162(only RFID), Z1620(bluetooth chip equipped)
  • front panel size:Height:124mm, Width:60mm;
    back panel size:Height:178mm, Width:72mm;
  • gross weight:3.2kg per lockset when configed with ANSI lock case M1(70mm back-set);
            3.0kg per lockset when configed with ANSI lock case M3(60mm back-set) including package;
  • major metal material: Zinc Alloy and ABS plastic (batteries cover);
  • mortise options:60mm backset (2-3/8 inches) ANSI lock case M3 or 70mm backset (2-3/4 inches) ANSI lock case M1;
  • deadbolt type:mechanical deadbolt for privacy;
  • adaptable door thickness:30mm to 55mm;
  • bluetooth key function:not available;
  • key cards type:Mifare S50 1K key card complies with ISO14443A standard ;
  • RFID card working Frequency:13.56MHz;
  • RFID Card reading distance: 0 to 3cm (relying on real electromagnetic environment);
  • EEPROM storage:1000 pieces of recent open record;
  • Power supply:it is powered by 4*1.5V AA (LR6) alkaline batteries / Lithium polymer batteries (user should purchase the quality batteries locally);
  • batteries life span: 12 to 18 months(standalone version)
    9 to 15 months(bluetooth version) depending on capacity of batteries;
  • Working voltage:4.5V-6.5V, if less than 4.7V, low battery warning will be made when presenting any valid administration cards in hotel lock mode; or presenting any valid key cards in DIY lock mode;
  • Low voltage warning:When working voltage of AA batteries is lower than around DC4.7V, when swiping management cards like master card, floor card, building card,etc (excluding guest card), the LED indicator of the door lock will flicker red and buzzer will sound while unlocking the door to remind the administrator of replacing old batteries with new ones. When such situation happens, the lock can still be opened around 50-100 times before batteries energy running out;
  • stand-by current: < 20μA (standalone version); < 40μA (bluetooth version);
  • Dynamic current: < 100mA (standalone version); < 160mA (bluetooth version);
  • self-locking feature: when swipe valid key card if user doesn't open the door within 3 seconds, the door will be locked again automatically.
  • Working temperature:0℃ to +50℃; ideal working temperature: 15 to 25; notice: if atmosphere temperature is lower than 4℃ or higher than 40℃, batteries performance will become weaker.Therefore, please consult with your battery supplier for details;
  • Storage condition: 0℃ to 80℃; keep dry; avoid exposure of directly in sunshine (Ultraviolet ray in sunshine will damage the molecule structure of plastic and make the plastic parts on the lock become crispy and fragile gradually.); avoid exposure of acid and alkaline chemical; avoid frozen; Humidity: 10~90% Relative Humidity;
data sheet

162-M1/M3 mortise cutting hole template(dwg format)
