slim SUS304 pull door handle smart lockstrong,Model:X600

As its graceful figure and slim size(37mm on width), made of high quality SUS304, multiple unlocking methods including fingerprint, RFID key card, digital PIN code and backup metal key, this brilliant biometrical resident lock is not only suitable for ordinary heat-insulated aluminum alloy doors or windows whose frame is very narrow but also for the access gateway which requires high security.

With the house of electronic circuit board sealed with ultrasonic technique and silicon gel,durable stainless steel lock panel, this lock is able to be adaptable on outdoors environment. We have successful use experience on the area of harsh climate.

Resident Lock Panel Appearance:

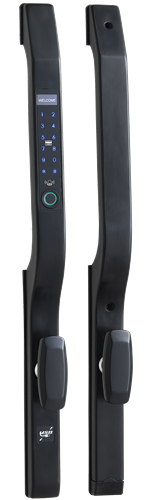

SS fingerprint bridge-cut lock X60 matt black for outdoors
stainless steel fingerprint bridge-cut lock X60 antique copper for outdoors

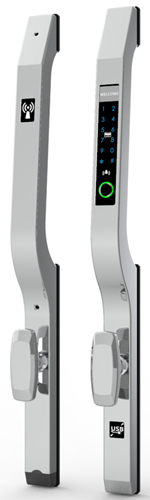

concise fingerprint bridge-cut lock X60 silver

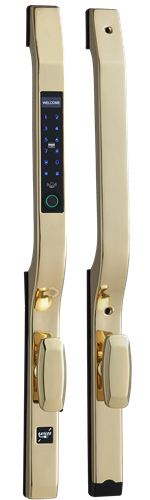

SUS304 fingerprint bridge-cutlock X60 polished gold

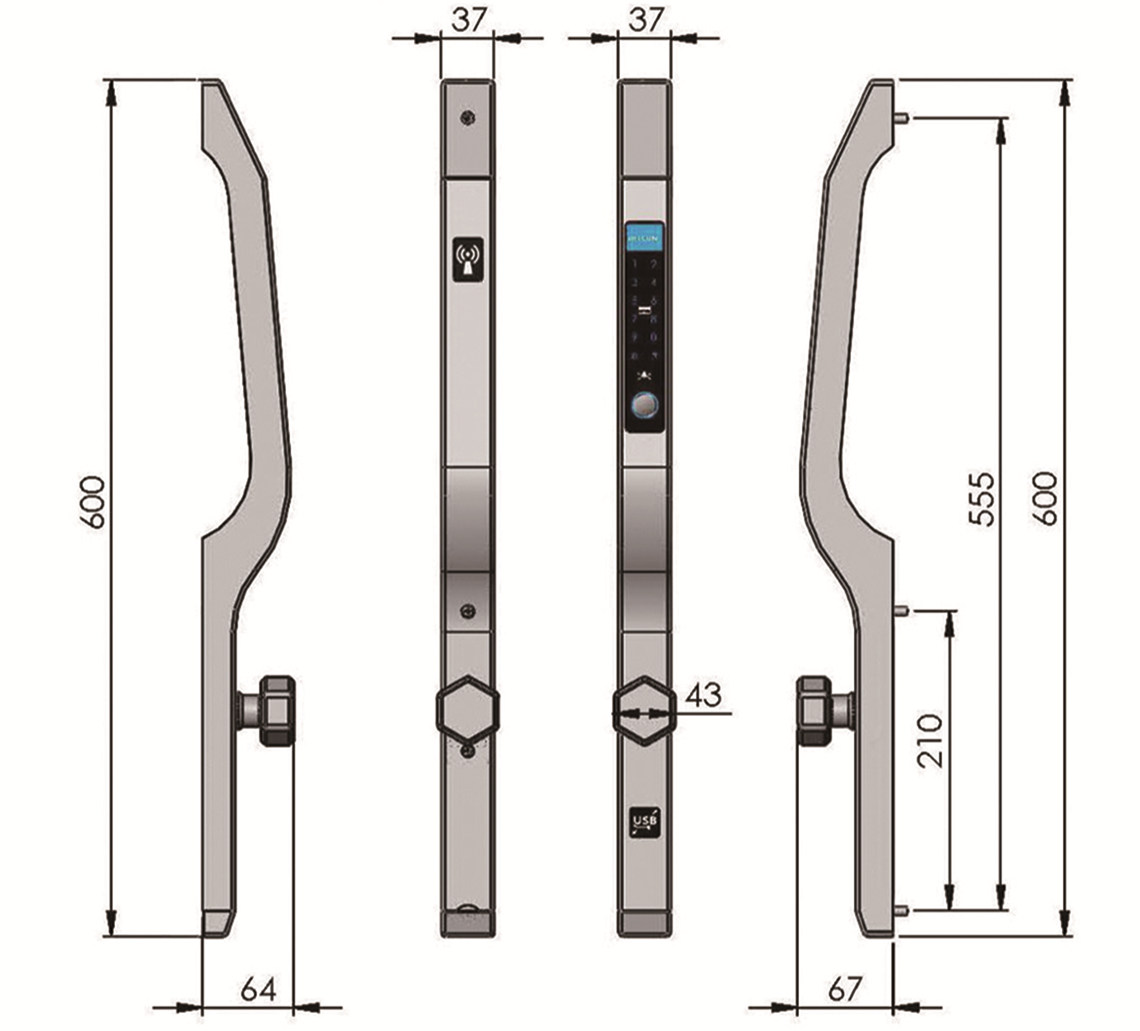

pull door handle smart lock panel dimension:

dimension of X60 SUS304 stainless steel biometrical lock for gateway

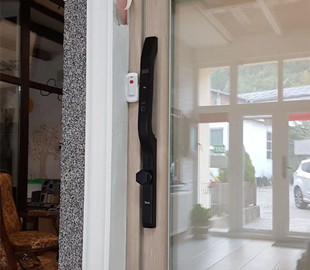

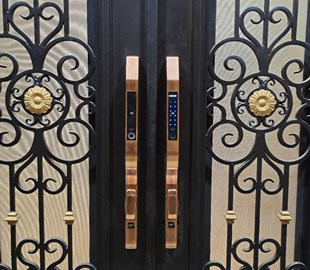

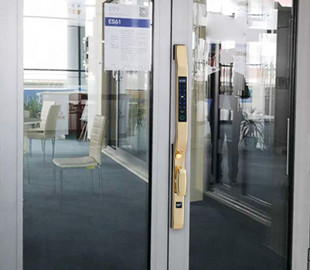

pull door handle smart lock installation demo:

installation demo 1 of biolock X60 for outdoors
installation demo 3 of biolock X60
installation demo 3 of biolock X60
installation demo 4 of biolock X8
installation demo 2 of biolock X60
installation demo 41 of slim smart lock for caravan(model X60)


Open Methods:

RFID key card

override key

RFID key card

RFID key card

fingerprint

Fingerprint

fingerprint

PIN code input

BLE bluetooth lock

bluetooth via Wechat(optional)

USB emergency charge port

USB charge port


Finish Options:

lock panel matt black finish

Matt Black

satin silver finish

Satin Silver

satin gold finish

Satin Gold

satin gold finish

Polished Gold

antique copper finish

Antique Copper



Installation demo of slim SUS304 pull door handle smart lock

Specification:

  • lock operation mode:residential standalone mode or residential Tuya wireless online mode
  • front panel size:Height:330mm, Width:37mm, thickness: 57mm including handle
    back panel size:Height:330mm, Width:37mm; thickness: 55mm including handle(MAX)
  • gross weight:2.9kg per lockset including package;
  • major metal material: Stainless Steel SUS304
  • mortise options: EU profile mortise for side hung door or EU profile mortise for sliding door ;
  • deadbolt type:depending on mortise;
  • backup metal key: available;
  • USB emergency charge:Micro USB port available
  • adaptable door thickness:28mm to 70mm;
  • bluetooth key function:available on China "Wechat" App;
  • fingerprint storage: 100 pieces;
  • fingerprint reading angle:front side of finger;
  • key cards type:Mifare S50 1K key card complies with ISO14443A standard ;
  • RFID card working Frequency:13.56MHz;
  • RFID Card reading distance: 0 to 3cm relying on real electromagnetic environment;
  • EEPROM storage:1K pieces of lock open record;
  • Power supply:powered by 4*1.5V AA or 8*1.5V AA (LR6) Lithium polymer batteries / Zinc–carbon battery(zinc-manganese dry battery). Zinc-carbon battery is recommended because there is seldom battery leakage problem. User may purchase quality batteries locally;
  • batteries life span: 12-18months depending on capacity of batteries and use frequency;
  • Working voltage:4.5V-6.5V, if less than 4.7V, low battery warning will be made when presenting any valid administration cards in hotel lock mode; or presenting any valid key cards in DIY lock mode;
  • Low voltage warning:When working voltage of AA batteries is lower than around DC4.7V, when presenting management cards like master card, floor card, building card,etc (excluding guest card), the LED indicator of the door lock will flicker red and buzzer will sound while unlocking the door to remind the administrator of replacing old batteries with new ones. When such situation happens, the lock can still be opened around 50-100 times before batteries energy running out;
  • Static current: < 20μA (standalone version); < 40μA (Tuya version);
  • Dynamic current: < 100mA (standalone version); < 160mA (Tuya version);
  • Working temperature:-5℃ to +60℃; ideal working temperature: 15 to 25; notice: if atmosphere temperature is lower than 4℃ or higher than 40℃, batteries performance will become weaker.Therefore, please consult with your battery supplier for details;
  • Storage condition: 0℃ to 80℃; keep dry; avoid exposure of directly in sunshine (Ultraviolet ray in sunshine will damage the molecule structure of plastic and make the plastic parts on the lock become crispy and fragile gradually.); avoid exposure of acid and alkaline chemical; avoid frozen; Humidity: 10~90% Relative Humidity(RH);
