All-in-one biometrical door lock

This model integrates biometrical recognition technoledge, PIN code input entry, RFID key card and backup override mechanical key. This biometrical door lock is secure, strong and brings new entry ways to people, which can be widely adopted at house, apartment, villas, office, accommodation, ocean liner and etc.

SUS304 stainless steel clutch mechanism,latches,deadbolt and advanced electroplating craft have greatly extended whole lifespan of this residential lock. The elegant outline of this fingerprint door lock must be fit for your luxury house and bring convenience for you.

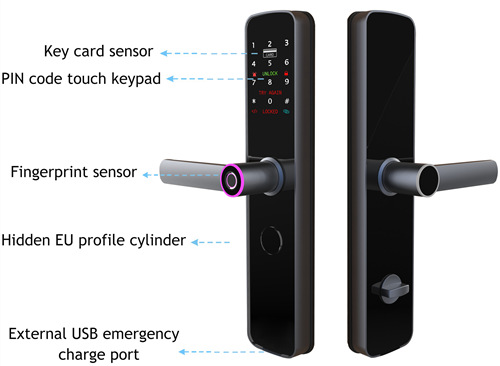

Lock Panel Appearance:

smart all-in-one fingerprint lock
smart all-in-one fingerprint lock

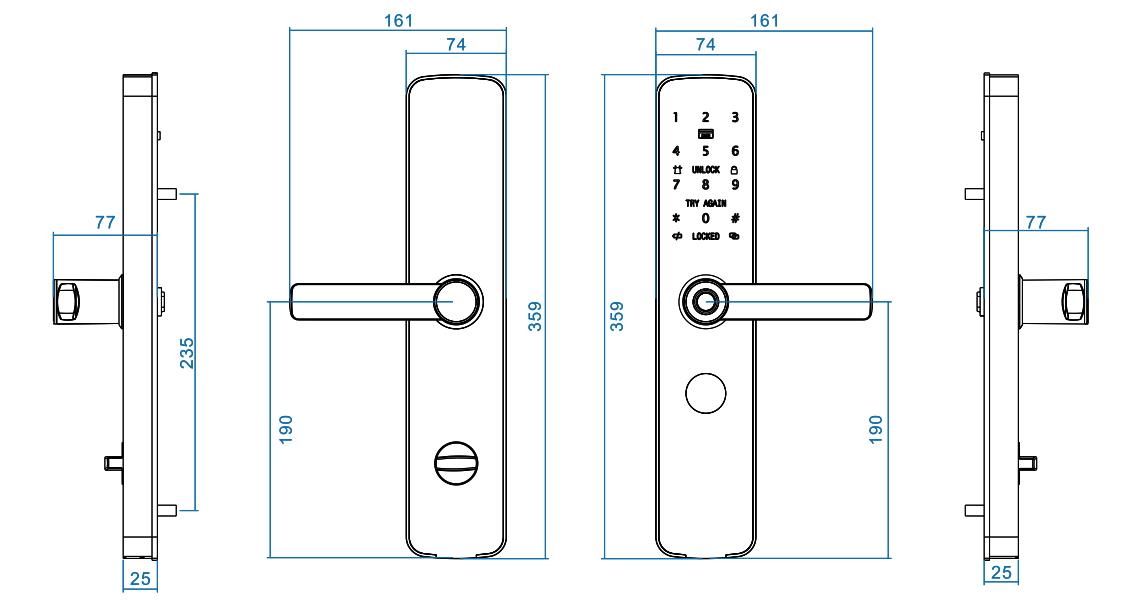

Fingerprint Lock Panel Scheme:

dimension of model Z701

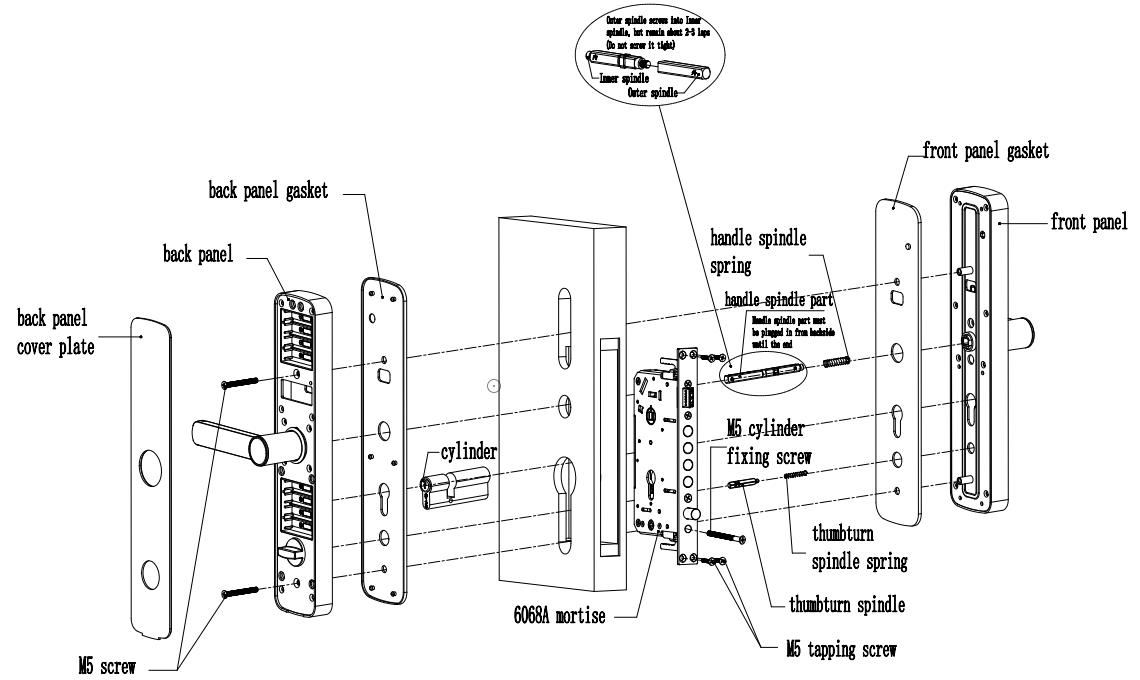

Installation demo:

installation demo of smart all-in-one fingerprint lock



Open Methods:

RFID key card

override metal key

RFID key card

RFID key card

USB emergency charge port

USB charge port

fingerprint

PIN code input

fingerprint

Fingerprint

BLE bluetooth lock

bluetooth via App or China Wechat(optional)


Finish Options:

lock panel matt black finish

Dark Gray



Electronic Mortise Option:

Operation video of resident lock model Z701

Smart Fingerprint Lock Z701 Specification:

    fingerprint lock function introduction

  • lock firmware: DIY mode for residence (flashable)
  • mortise options:60mm backset,68mm distance 6068 mortise
  • front module size:Height:359mm, Width:74mm, thickness:25mm
    rear module size:Height:359mm, Width:74mm; thickness:25mm
  • gross weight:3.8kg per lockset including package;
  • main metal material:zinc alloy, stainless steel SUS304, magnet;
  • deadbolt type:mechanical deadbolt,double lock for privacy; When double lock comes out, the door can not be opened from outside even with the registered card, metal key or password PIN code.
  • easy for leaving:user may lift the handle from outside to pull out the extra latches for security;
  • adaptable door thickness:30mm to 70mm;
  • bluetooth mobile key:available on China Tencent Wechat App;
  • fingerprint storage: 100 pieces;
  • fingerprint reader:on the handle lever;
  • PIN code storage:super admin password*1, user password*1;
  • PIN code type: Number 0 to Number 9;
  • PIN code length: 4 to 10 digits;
  • PIN code anti-peeping: upto 30digit virtual code to avoid from peeping while inputting real PIN code: When user enter the your home with other people, he doesn't want to keep the PIN code in privacy. So he may input any number randomly and then input the real PIN code in the end or in the middle. Finally he can open the door without leaking the true password;
  • key card storage:200;
  • key cards type:13.56MHz Mifare S50 1K key card complies with ISO14443A standard;
  • RFID card reading distance: 0 to 5cm depending on real electromagnetic environment;
  • trail audit memory storage:1K pieces of recent open record;
  • power supply:powered by 4*1.5V AA or 8*1.5V AA (LR6) Lithium polymer batteries / Zinc–carbon battery(zinc-manganese dry battery). Zinc-carbon battery is recommended because there is seldom battery leakage problem. User may purchase quality batteries locally;
  • batteries life span: 12-18months depending on capacity of batteries and use frequency
  • Working voltage:DC4.5V-6.5V;
  • Low voltage alert:if less than 4.7V, low battery alert will be made ;
  • wrong attempt alert:after 3 times of wrong entry attempt;
  • auto-relock feature: when swiping valid key card or inputting correct code but user doesn't open the door within 5 seconds, the door will be locked again automatically;
  • external Type C USB port:for emergency power supply if battery is failure;
