biometrical lock,model: X1

By adopting high quality SUS304 stainless steel, liftspan of model X1 has been greatly extended. Furthermore, RFID key card reader, key pad for PIN code entry, fingerprint sensor and bluetooth key entry via China Wechat applet can be optional for this lock to enhance its features, making it to be a hightech intelligent lock. This is good alternative stainles steel SUS304 lock for outdoors gates.

Its gene also derives from Model slim X30 SS aluminum bridge lock for aluminum door, whose outline is of great curves like hourglass figure.

SS Biometrical Lock Panel Appearance:

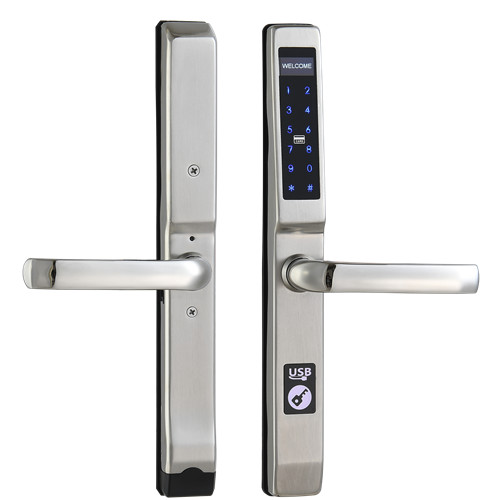

concise fingerprint lock X1 silver

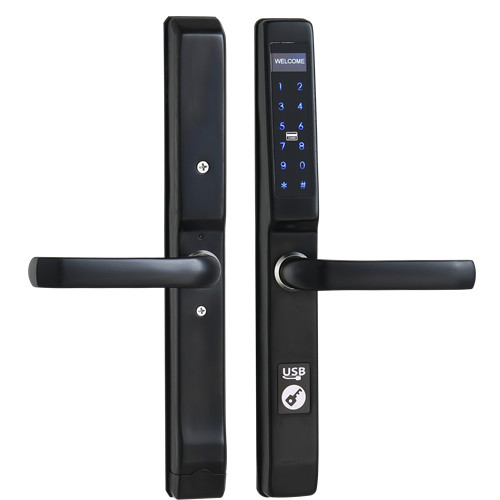

concise fingerprint lock X1 black

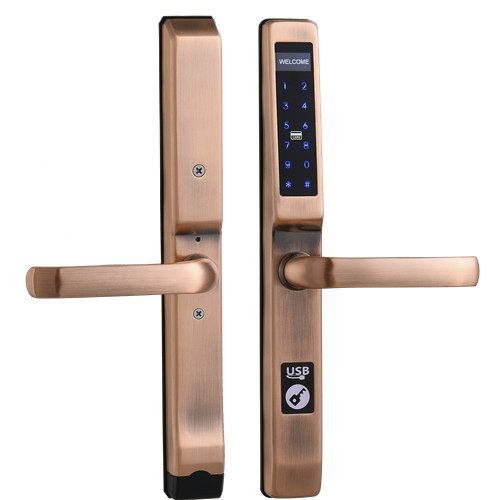

concise fingerprint lock X1 antique copper

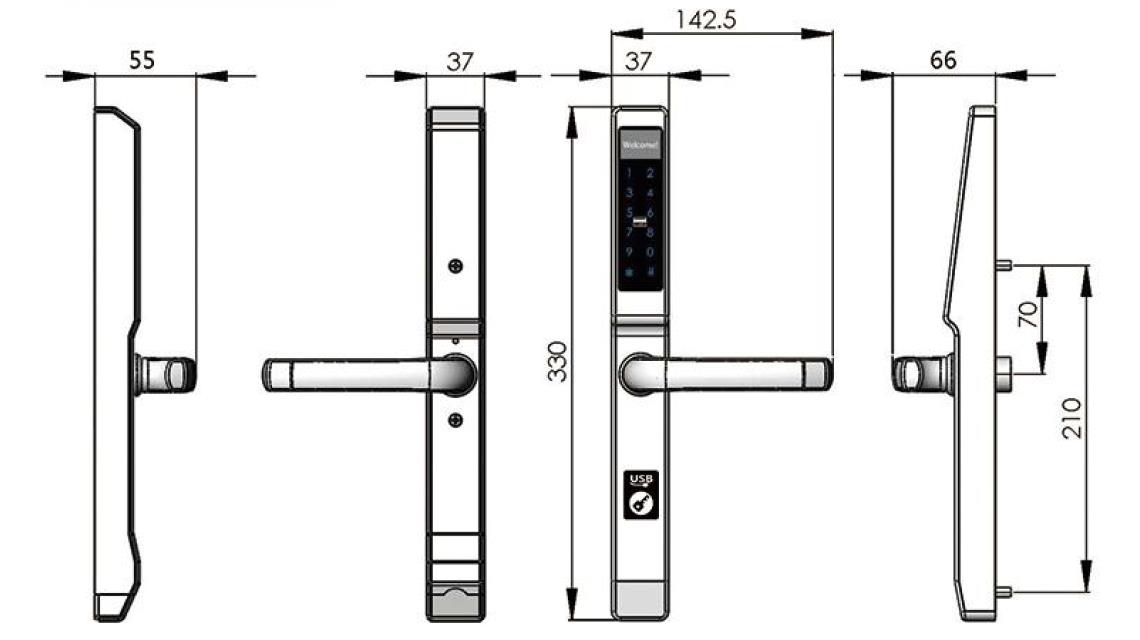

SS Biometrical Lock Panel Dimension:

dimension of handy narrow width stainless steel resident lock X1



SS Biometrical Lock installation demo:

installation demo 1 of biolock X30
installation demo 2 of biolock X30
installation demo 3 of biolock X30
installation demo 4 of biolock X30



Open Methods:

RFID key card

override metal key

RFID key card

RFID keycard

fingerprint

PIN code entry

fingerprint

Fingerprint sensor(optional)

USB emergency charge port

USB charge port

BLE bluetooth lock

Bluetooth via Wechat(optional)


Finish Options:

lock panel gun black finish

Gun Black

satin silver finish

Satin Silver

satin gold finish

Satin Gold

antique copper finish

Antique Copper



Smart biometrical lock Specification:

  • lock mode:residential|office mode
  • mortise options: EU profile mortise for side hung door or EU profile mortise for sliding door ;
  • front panel size:Height:330mm, Width:37mm, thickness:less than 55mm including handle
    back panel size:Height:330mm, Width:37mm; thickness:less than 66mm including handle(MAX)
  • gross weight:2.5kg per lockset including package;
  • major metal material:SUS304
  • deadbolt type:depending on mortise;
  • backup metal key: available;
  • adaptable door thickness:28mm to 60mm;
  • bluetooth key function:available on China "Wechat" App;
  • USB emergency charge:Micro USB port available
  • fingerprint storage: 100 pieces;
  • fingerprint reading angle:front side of finger;
  • PIN code storage:10 groups;
  • PIN code length: 6 to 10 digits;
  • PIN code type: Number 0 to Number 9;
  • anti-peeping: upto 30digit virtual code to avoid from peeping while inputting real PIN code;
  • self-lock alarm:after 5 times wrong PIN code input attempt;
  • key cards type:Mifare S50 1K key card complies with ISO14443A standard ;
  • RFID card working Frequency:13.56MHz;
  • RFID Card reading distance: 0 to 3cm depending on real electromagnetic environment;
  • EEPROM storage:1K pieces of lock open record;
  • Power supply:powered by 4*1.5V AA or 8*1.5V AA (LR6) Lithium polymer batteries / Zinc–carbon battery(zinc-manganese dry battery). Zinc-carbon battery is recommended because there is seldom battery leakage problem. User may purchase quality batteries locally;
  • batteries life span: 12-18months depending on capacity of batteries and use frequency;
  • Working voltage:4.5V-6.5V;
  • Low voltage warning:available,if less than 4.7V;
  • Static current: < 20μA (standalone version); < 40μA (Tuya version);
  • Dynamic current: < 100mA (standalone version); < 160mA (Tuya version);
