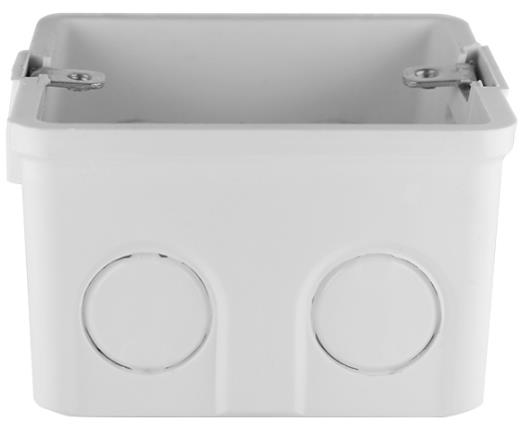

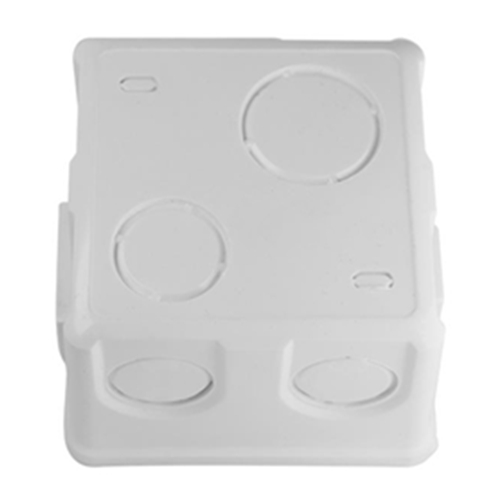

Type 86 Wall Mounting Box

PVC wall mounting box with lid is used to situate different kinds of switches of different brands including lighting switches, energy saving switches.

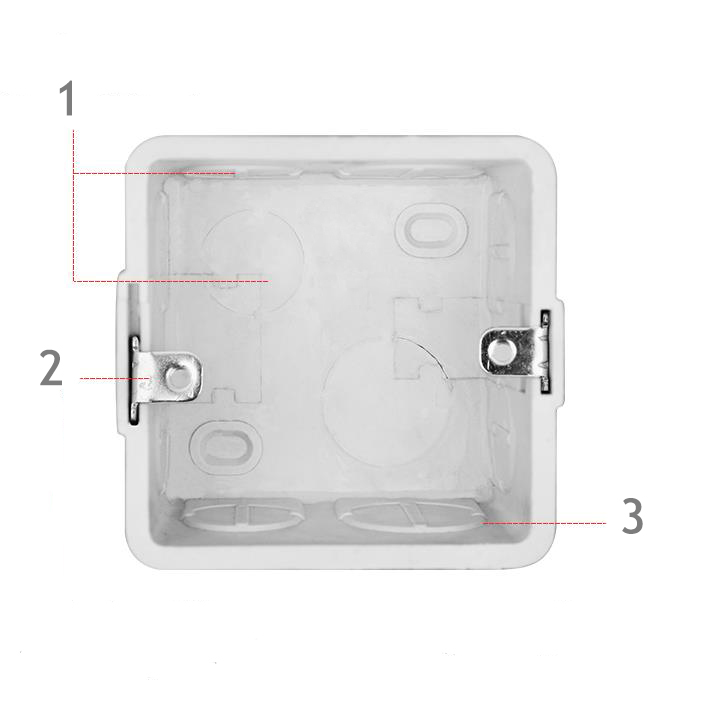

Features of Wall Mounting Box

1. Multiple lids are reserved for wiring connection, convenient for builder.


2. Plate shape nut for fixing screw: adjustable for different fixing screw position;
   Strong shell whose thickness is 1.2mm;
   Durable teeth for fixing screw.


3. Solid body of wall mounting box: It is so thick that it is not easy to be deformed. And it is made of fire-resistant PVC material,which makes it be able to survive much longer time than the other similar products in fire.

Specification:

• Item:wall mounting box type 86
• Dimension:82mm(L)*78mm(W)*50mm(H)
• Installation method: inner wall

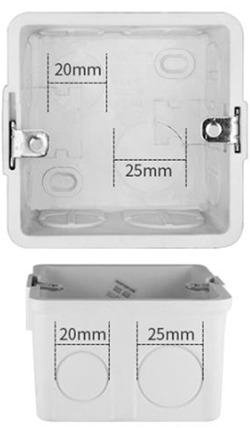

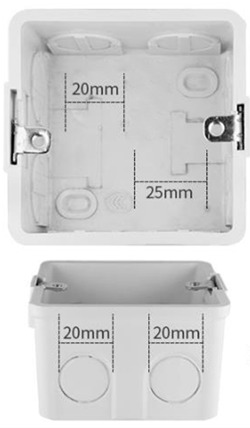

• Lid diameter:20mm|25mm optional
• Material:quality PVC
• Shell color: white
