jk tech co ltd

LED tube light


Benefit

Our new LED tube light can perform multiple color or specific single color. With advantages of less heavy-metal generation, less energy consumption, optional embedded microwave human detection sensor and water-proof shell, it is an ideal retrofit lighting source for traditional fluorescent tube in household and commercial luminaires field,such as building outline decoration,landscape beautification,etc


LED Linear Light series(half moon style)

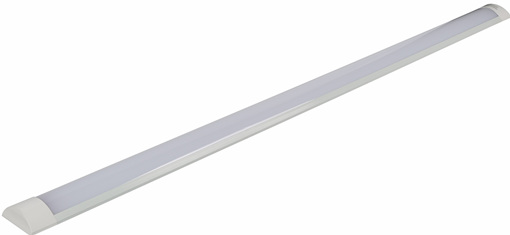

half moon led linear light 9w-18W

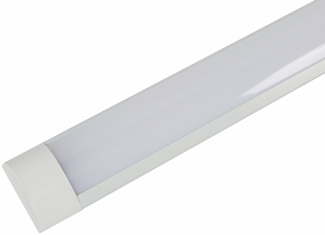

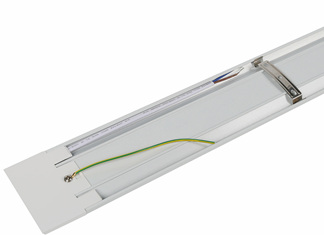

half moon led linear light 9w-18W half moon led linear light inner view

Specification

Model Rated power Working voltage CRI CCT Flux(MAX lumen) Beam angle Size(mm) Life(hours) Material LED chip brand
JH02-20W 20W 180-264V >=70 Warm White:3000-3500K
Pure White 4000-4500K
Cool White 6000-6500K
2000 110° 600*75 15000 PC+aluminium Epistar
JH02-27W 27W 2700 600*75
JH02-40W 40W 4000 1200*75
JH02-47W 47W 4700 1200*75

LED T8 Tube (PC series)

led t8 tube 9w-18W

Specification

Model Rated power Working voltage CRI CCT Flux(MAX lumen) Beam angle lamp base length(mm) Life(hours) Material LED chip brand
T8-GL01-9W 9W 176-264V >=70 Warm White:3000-3500K
Pure White 4000-4500K
Cool White 6000-6500K
900 180° G13 600 25000 PC plastic(clear/milky options) Epistar
T8-G01-18W 18W 176-264V 1800 1200
T8-GL02-9W 9W 100-264V 900 600
T8-GL02-18W 18W 100-264V 1800 1200

LED T8 Tube (Glass series)

Specification

Model Rated power Working voltage CRI CCT Flux(MAX lumen) Beam angle lamp base length(mm) Life(hours) Material LED chip brand
T8-GL03-20W 20W 176-264V >=70 Warm White:3000-3500K
Cool White 6000-6500K
2400 180° G13 1200 15000 Glass Epistar
T8-GL03-28W 28W 3000

LED T8 Tube (PC+Aluminium series)

led t8 tube PC and aluminium

Specification

Model Rated power Working voltage CRI CCT Flux(MAX lumen) Beam angle lamp base length(mm) Life(hours) Material LED chip brand
T8-GL04-8W 8W 176-264V >=70 Warm White:3000-3500K
Cool White 6000-6500K
800 180° G13 600 25000 aluminium housing+PC plastic(clear/milky options) Epistar
T8-GL04-20W 20W 2000 1200
T8-GL04-24W 24W 2400 1500
T8-GL05-40W 40W 100-264V 4000 2400
T8-GL06-48W 48W 4800

LED T8 with Battern series

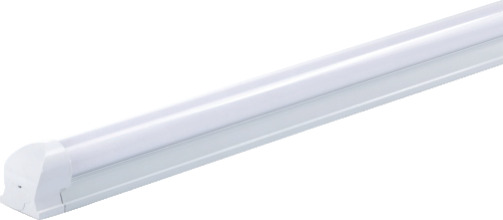

led t8 batten light

Specification

Model Rated power Working voltage CRI CCT Flux(MAX lumen) Beam angle Size(mm) Life(hours) Material LED chip brand
T8-A03-10W 10W 100-264V >=70 Warm White:3000-3500K
Cool White 6000-6500K
1000 110° 609*33*35 15000 aluminium housing+PC plastic
(clear/milky options)
Epistar
T8-A04-20W 20W 2000 1209*33*35

LED T5 tube light series

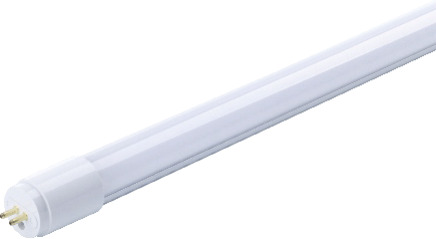

led t5 tube light

Specification

Model Rated power Working voltage CRI CCT Flux(MAX lumen) Beam angle Length Life(hours) Material Lamp base
T5-A01-8W 8W 176-264V >=70 Warm White:3000-3500K
Cool White 6000-6500K
780 180° 600mm 15000 aluminium housing+PC
(clear/milky options)
G5
T5-A02-16W 16W 1530 1200mm

LED T5 battern light series

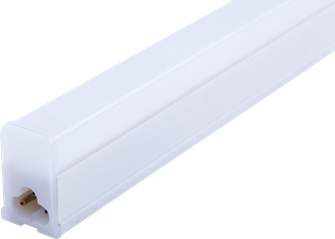

led t5 battern light

Specification

Model Rated power Working voltage CRI CCT Flux(MAX lumen) Beam angle Size(mm) Life(hours) Material Lamp base
T5-A04W 4W 176-264V >=70 Warm White:3000-3500K
Cool White 6000-6500K
300lm 140° 297*22.5*35 15000 PC
(clear/milky options)
G5
T5-A08W 8W 600lm 567*22.5*35
T5-A12W 12W 900lm 867*22.5*35
T5-A16W 16W 1200lm 1167*22.5*35

Caution: Do not apply the lamp in airtight luminaire! The above products' parameters and specification is only for reference. We can be modified according to customers practical requirement!
